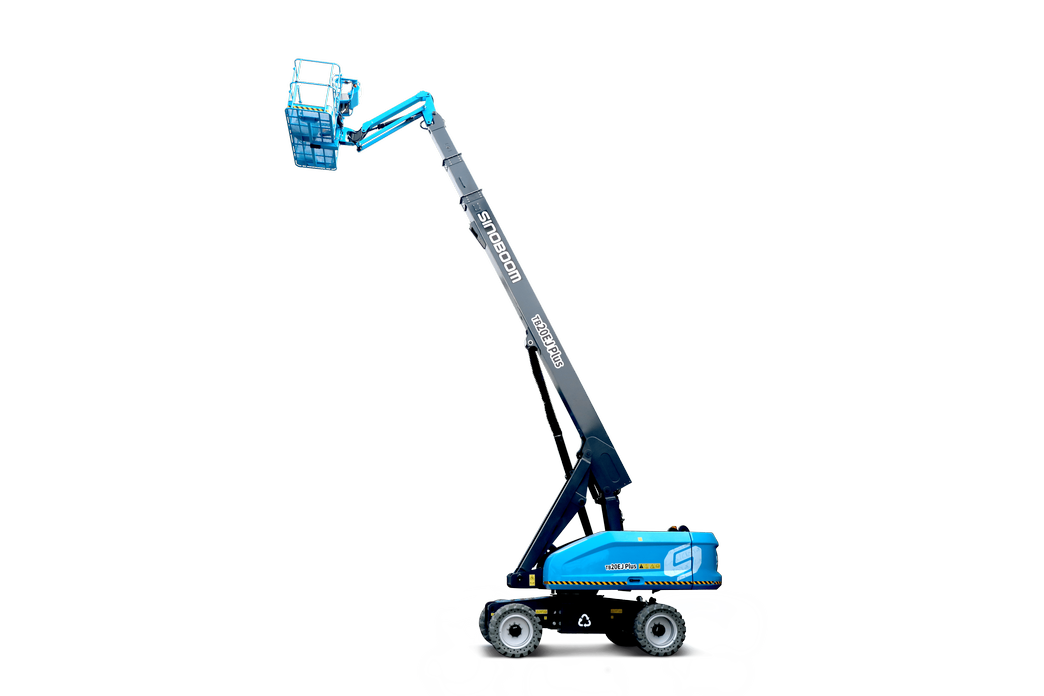

Sinoboom TB20EJ Plus – 22m Max Working Height Lithium Boom lift
Electric Powered Telescopic Boom Lift
Key Specs
- Max Working Height: 22 m | 72.1 ft
- Platform Capacity: 300~454 kg | 661~1000 lb
| Specifications | |
| Max Working Height | 22 m |
| Max Platform Height | 20 m |
| Max Outreach (horizontal) | 15.4 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 11,950 kg |
| Power Source | 48 V, 500 Ah (lithium battery) |
| Stowed Length | 9.99 m |
| Stowed Width | 2.49 m |
| Stowed Height | 2.79 m |
| Ground Clearance | 0.39 m |
Green
■ Comfortable working environment without noise pollution, meet indoor or
emissions-critical site requirements
Precision Performance
■ Three full-scale joysticks for gradual proportional control, Operate with
smooth starting and stopping and precision approach to your worksite target
■ The Sinoboom IoT system and intelligent 7-inch screen can efficiently control
the use and behavior of the equipment
Economical
■ Battery quality assurance, low failure rate and reduced maintenance costs
compared with diesel power, which reduces overall operating costs
Strong Site Passing Performance
■ Both the active and inactive states have an oscillating function, allowing work
to be performed on inclines and uneven ground
