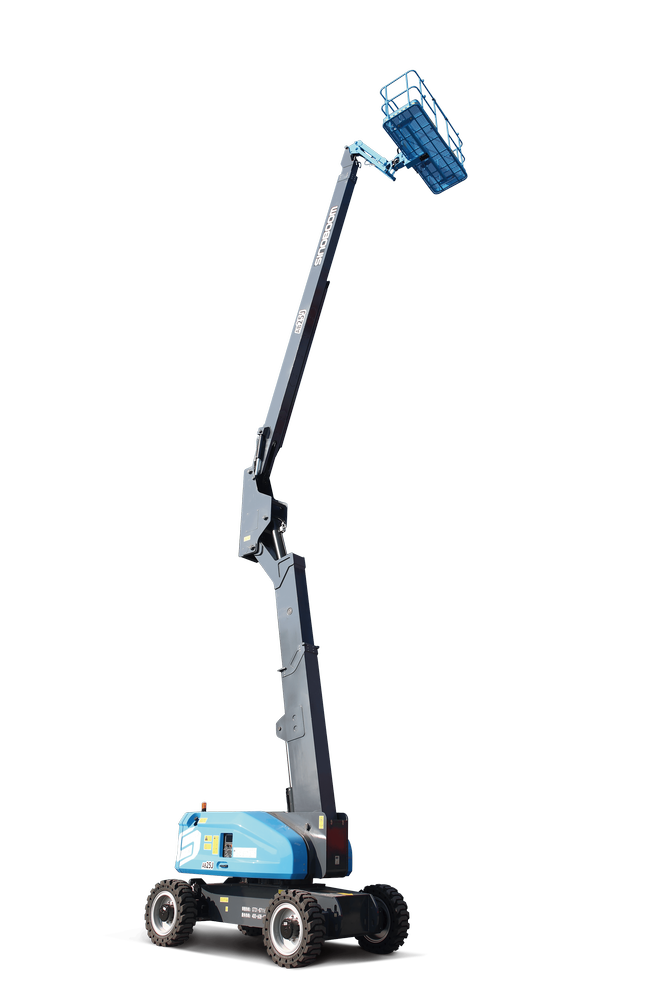

Sinoboom AB25J – 26.6m Max Working Height Boom lift
Engine Powered Articulating Boom Lift
Key Specs
- Maximum Working Height: 26.6 m | 87.3 ft
- Platform Capacity: 230 kg | 507 lb
| Specifications | |
| Max Working Height | 26.6 m |
| Max Platform Height | 24.6 m |
| Max Outreach (horizontal) | 16.1 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 230 kg |
| Weight | 17,150 kg |
| Power Source | Diesel Cummins, QSF2.8t3TC72, 54 kW |
| Stowed Length | 11.51 m |
| Stowed Width | 2.49 m |
| Stowed Height | 3.2 m |
| Ground Clearance | 0.39 m |
Powerful Off-Road Performance
■ 40%-45% gradeability, proprietary patented technology for anti-skid
control to ensure a strong off-road capability
control to ensure a strong off-road capability
Smart maintenance
■ Smart 7″ screen display, fault and status information display for easy
viewing of machine status and fault diagnosis, parameters and settings
viewing of machine status and fault diagnosis, parameters and settings
Precision performance
■ 3 joysticks with variable proportional control, boom swing, boom
extension, turntable rotation and walking speed, smooth start and stop
motion, accuracy in reaching the operation target
extension, turntable rotation and walking speed, smooth start and stop
motion, accuracy in reaching the operation target
Safe and reliable
■ Secure and reliable folding arm, luffing operation with hydraulic
interlocking, and hydraulic-connection body leveling
■ Simple and reliable hydraulic platform leveling
interlocking, and hydraulic-connection body leveling
■ Simple and reliable hydraulic platform leveling
Operating efficiency
■ The working platform can be lifted and lowered to any position without
the need to operate the folding arm.
■ Quick platform ascent and descent
the need to operate the folding arm.
■ Quick platform ascent and descent
