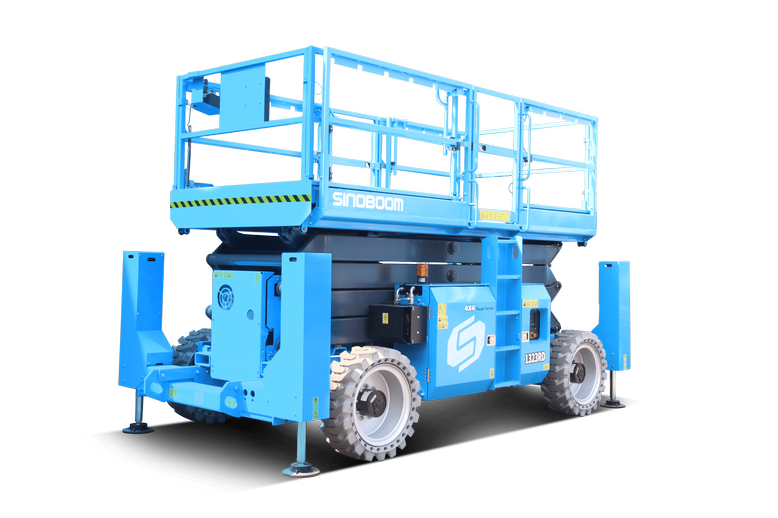

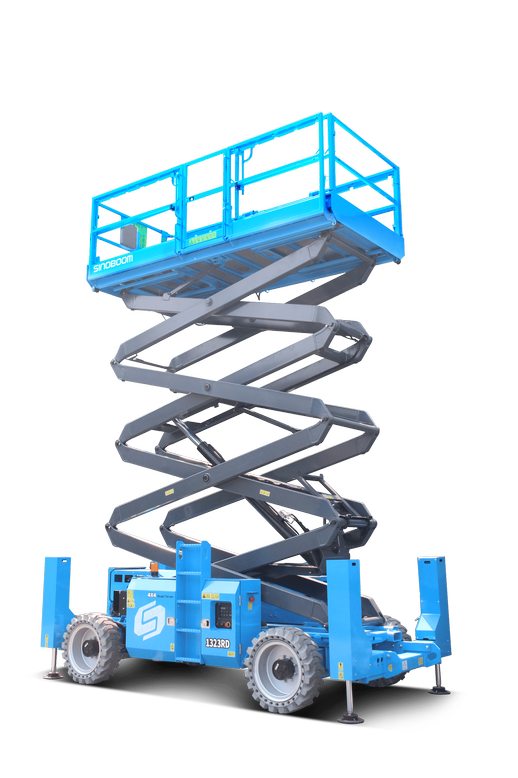

SINOBOOM 1323RD RT Scissor Lift – 15.1m Max Working Height
Compare Key Specs| Specifications of SINOBOOM 1323RD RT | |
| Max Working Height | 15.10 m |
| Max Platform Height | 13.10 m |
| Platform Length (Extended) | 6.50 m |
| Platform Width | 1.82 m |
| Platform Capacity | 680 kg |
| Weight | 7,380 kg |
| Overall Length | 4.88 m |
| Overall Width | 2.31 m |
| Stowed Height (Rails Up) | 2.96 m |
| Stowed Height (Rails Down) | 2.20 m |
| Ground Clearance | 360 mm |
| Power Source | Diesel |
Standard Features
- 4 WD × 2 WS
- Document box
- Emergency stop
- Foldable guardrails
- Tilt alarm
- Drivable at full height (1323RD only
- Active oscillating function
- Telematics-ready connector
- Forklift pockets
- Electronic painting
- Dual slide-out extension platform
- Horn & buzzer
- Motion alarm
- Flashing beacon
- Auto-levelling hydraulic outriggers
- 7:45 platform
- Lifting and tie-down points
- Proportional controls
- Emergency lowering system
- Auto braking system
- Load sensing system
- Foam-filled non-marking tires
- AC power to platform
