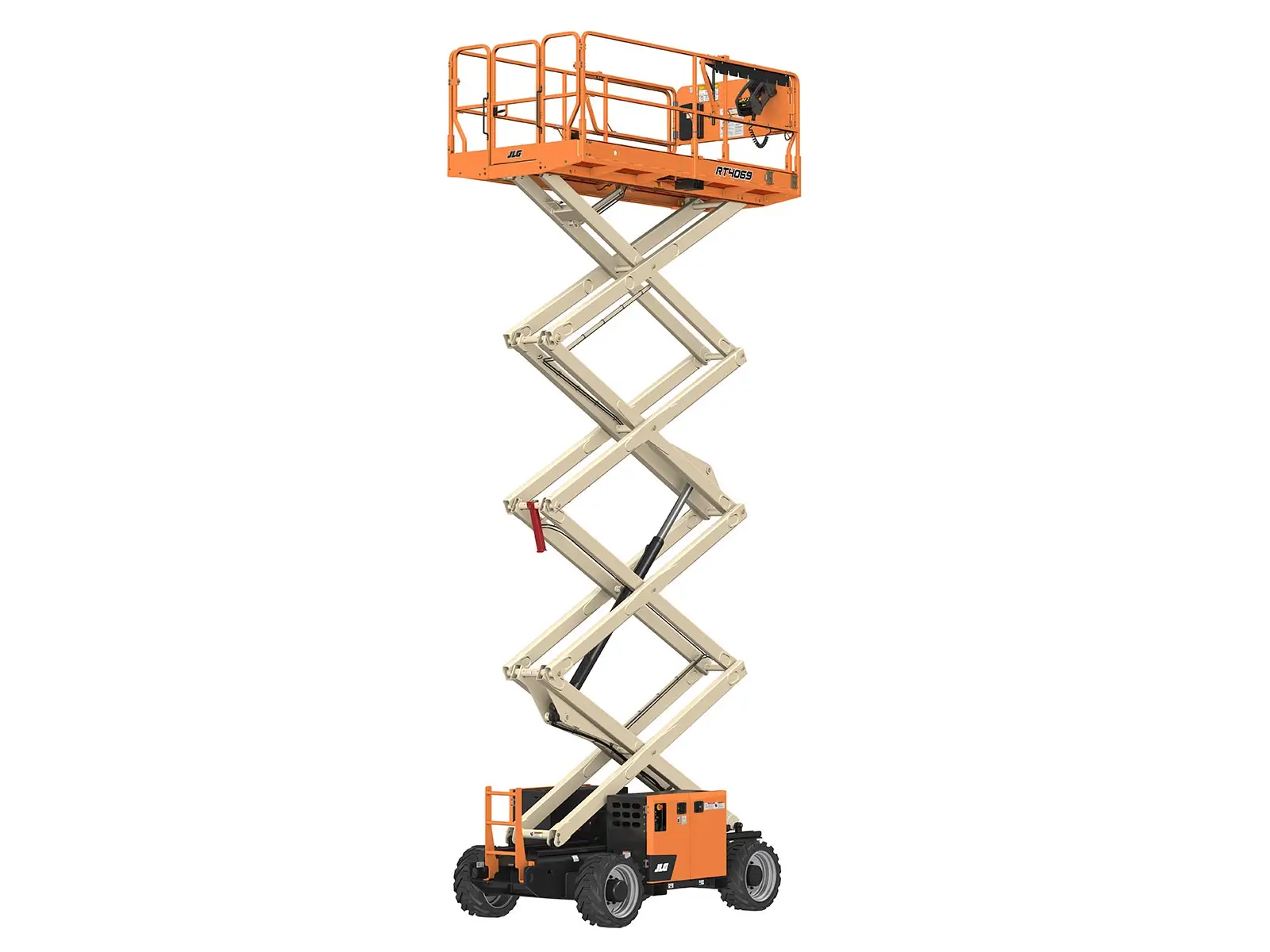

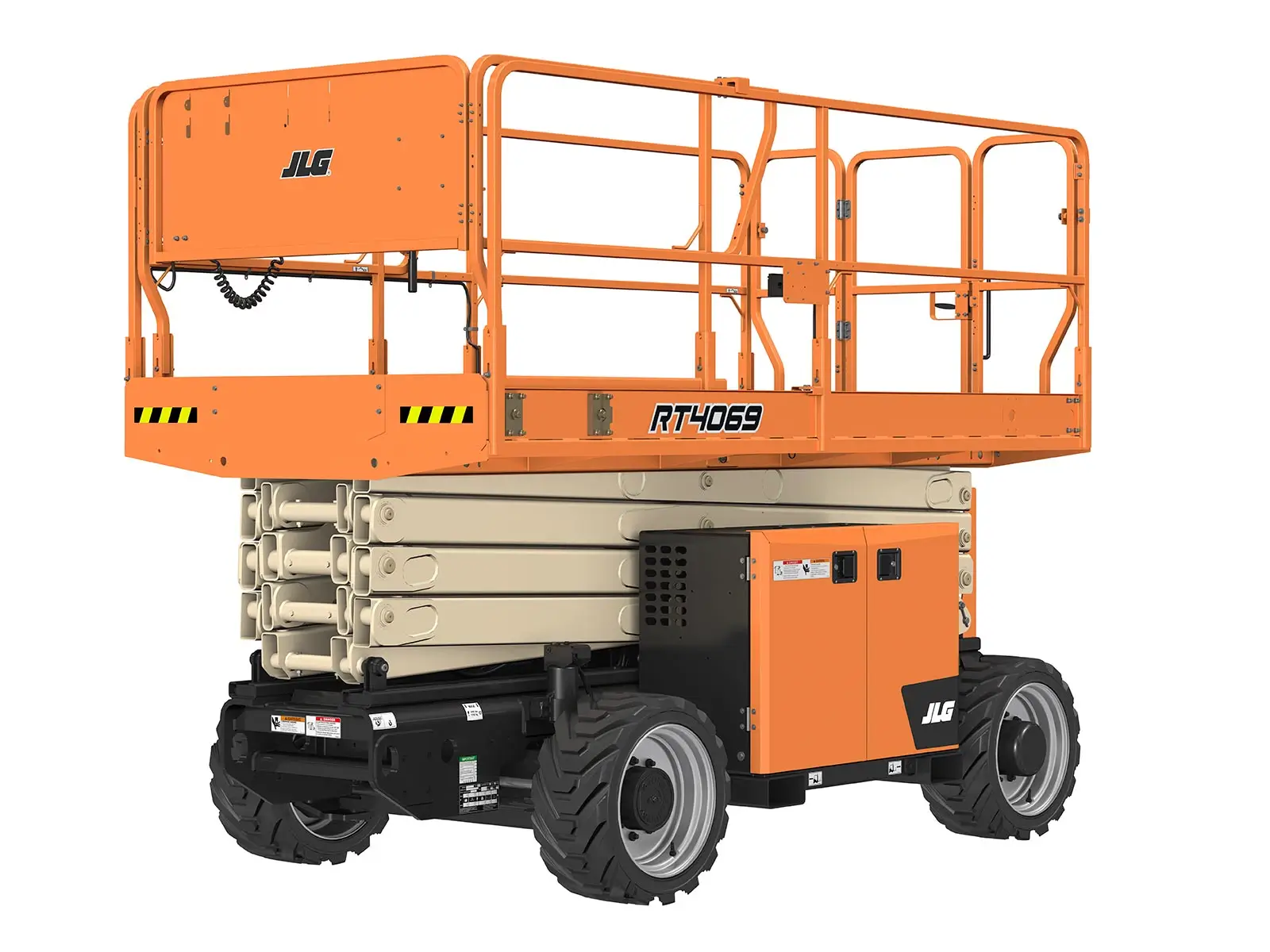

JLG RT4069 RT Scissor Lift – 14.3m Max Working Height
Key Specs
- Max Working Height: 14.3 m / 46 ft
- Max Platform Capacity: 363 kg / 800 lb
| Specifications | |
| Max Working Height | 14.3 m |
| Max Platform Height | 12.3 m |
| Platform Length (Extended) | 4.37 m |
| Platform Width | 1.60 m |
| Platform Capacity | 363 kg |
| Weight | 4,779 kg |
| Overall Length | 3.3 m |
| Overall Width | 1.76 m |
| Stowed Height (Rails Up) | 2.62 m |
| Stowed Height (Rails Down) | 1.50 m |
| Ground Clearance | 257 mm |
| Power Source | Diesel |
Standard Features
- 42in Roll-out Deck Extension
- Nickel Plated Pins, Yellow Zinc-Chromate Plated Fasteners
- Pin-Less Fold Down Rail System
- Platform Control Box with LCD Display, USB Charger and Phone Holster
- Self-Closing Gate
- Full Time Traction Control
- Lubrication-Free Scissor Arm Bushings
- Manual Descent Pull Cable1
- Oscillating Front Axle
- Scissor Maintenance Prop
- Tie Down Lugs
- 26 x 12 Foam Filled Lug Tread Tires
- AC Receptacle In Platform
- All Motion Alarm
- Horn
- Hourmeter
- Proportional Lift and Drive
- Pin-based Load Sensing System
- Tilt Display with Lift Sense System
