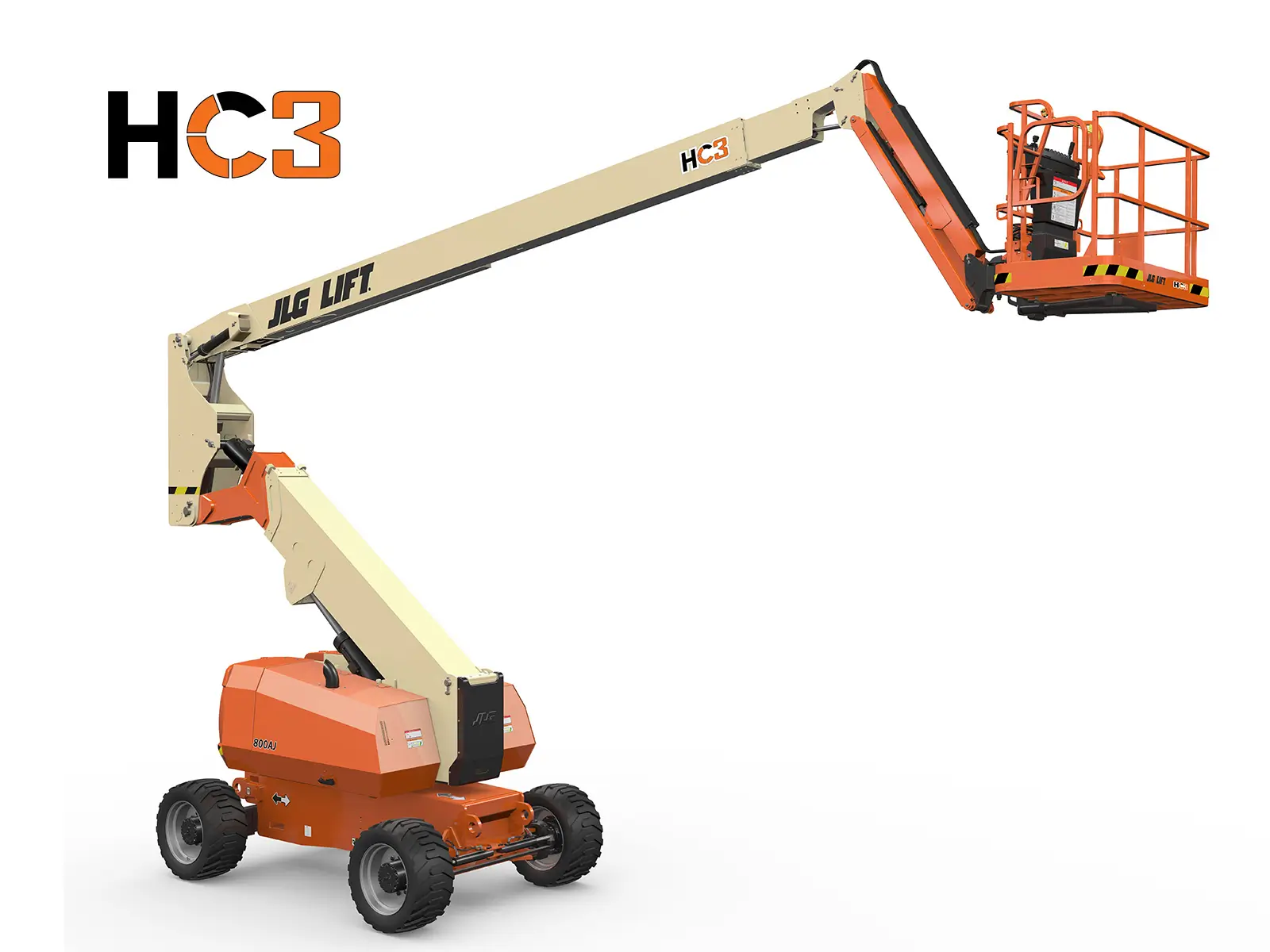

JLG 800AJ HC3 – 26.5m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 26.5 m / 86.9 ft
- Platform Capacity – Restricted: 454 kg / 1000 lb
| Specifications | |
| Max Working Height | 26.5 m |
| Max Platform Height | 24.5 m |
| Max Outreach (horizontal) | 15.9 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 17,023 kg |
| Power Source | Diesel Deutz D2011L04 67 hp 50 kW |
| Stowed Length | 11.22 m |
| Stowed Width | 2.48 m |
| Stowed Height | 2.97 m |
| Ground Clearance | 0.28 m |
• Oscillating Axle
• Articulating Jib
• Oscillating Axle
• 180 Degree Hydraulic Platform Rotator
• 110V-AC Receptacle in the Platform
• 5 Degree Tilt Alarm/Indicator Light
• Swing-Out Engine Tray
• 12V-DC Auxiliary Power
• Hourmeter
• Control ADE® System
• Proportional Controls
• Gull-Wing Hoods
• Hydrostatic Drive
• Platform Console Machine
• Status Light Panel
• Lifting/Tie Down Lugs
• Engine Distress Warning
• Rim Protector Lug Tread Tires
• Engine Distress Shutdown —
Selectable via Analyzer
• All Motion Alarm
• Load Sensing System
• SkyGuard SkyLine™
