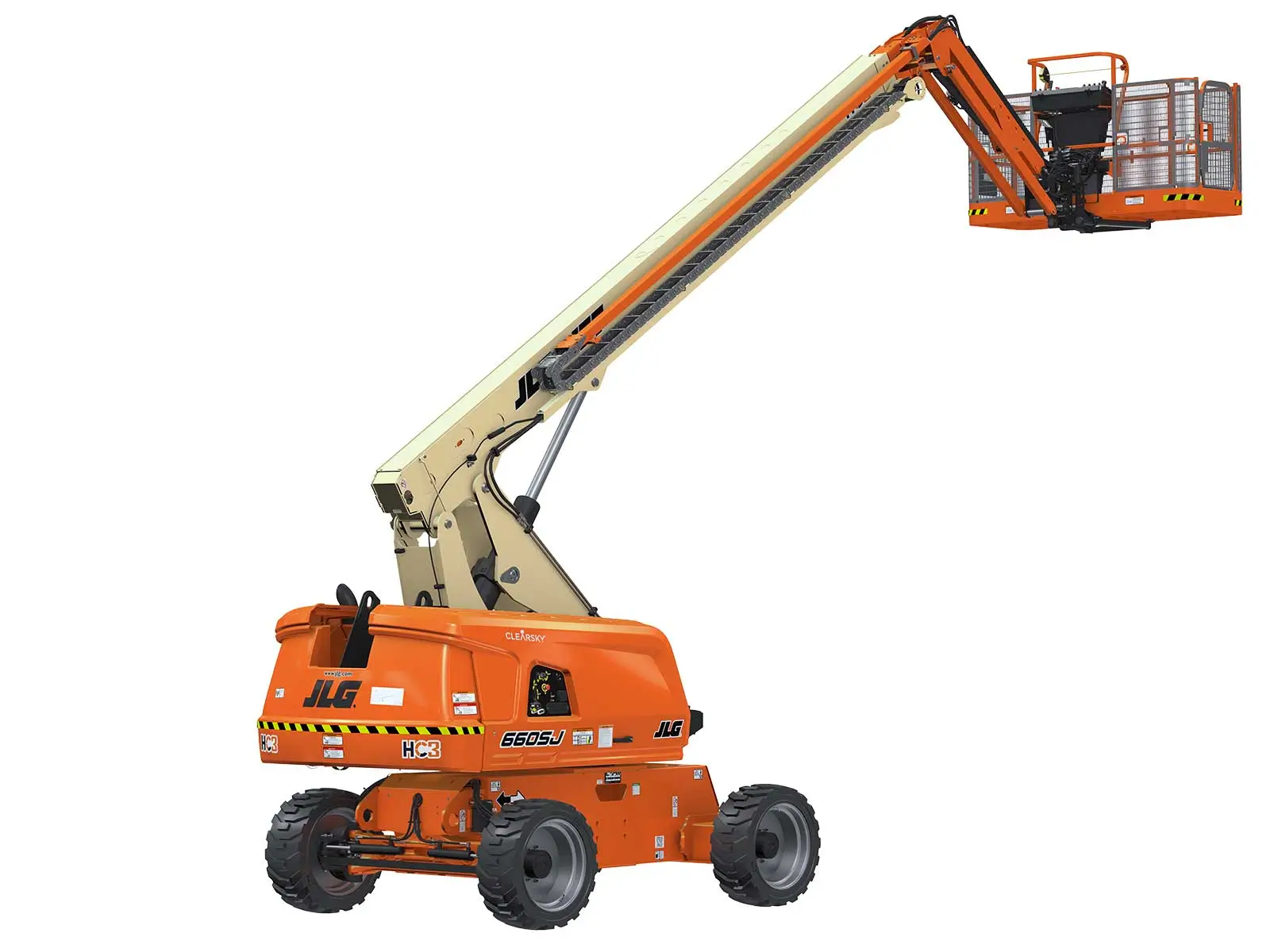

JLG 660SJ HC3 – 22m Max Working Height Boom lift
Diesel Powered Telescopic Boom Lift
Key Specs
- Max Working Height: 22.02 m / 72.2 ft
- Platform Capacity: 300 kg ~ 454 kg / 661 lb ~ 1000 lb
| Specifications | |
| Max Working Height | 22 m |
| Max Platform Height | 20.02 m |
| Max Outreach (horizontal) | 17.4 m |
| Platform Size | 0.91 x 2.44 m |
| Max Platform Capacity | 454 kg |
| Weight | 13,281 kg |
| Power Source | Diesel Deutz TD2.9L4 Tier 4 Final 48.8 hp 36.4 kW |
| Stowed Length | 10.01m |
| Stowed Width | 2.48 m |
| Stowed Height | 2.58 m |
| Ground Clearance | 0.29 m |
