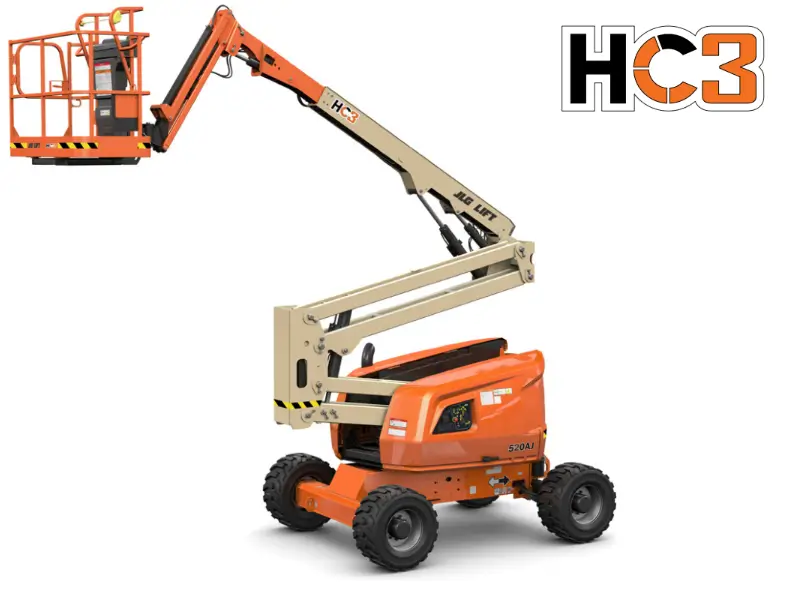

JLG 520AJ HC3 – 18m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 18 m / 59 ft
- Max Platform Capacity: 454kg | 1000 lb
| Specifications | |
| Max Working Height | 18 m |
| Max Platform Height | 16 m |
| Max Outreach (horizontal) | 10 m |
| Platform Size | 0.76 x 1.83 m |
| Max Platform Capacity | 454 kg |
| Weight | 8,618 kg |
| Power Source | Diesel Deutz D2.9L4 36.4kw (48.8hp) |
| Stowed Length | 7.8 m |
| Stowed Width | 2.35 m |
| Stowed Height | 2.27 m |
| Ground Clearance | 0.42 m |
• 0.76 m x 1.83 m side entry
• Multiple function operation
• Proportional Controls
• Full proportional drive joystick control with integral thumb steer switch
• Full proportional main boom and swing joystick control
• Multiple speed control for lower boom, telescope and platform rotate
• Selectable creep speed on drive / lift and swing functions
• 1.24 m articulating jib
• 180 degree powered platform rotator
• Platform console machine status light panel 1
• Load sensing system
• AC power cable to platform
• Dura Tough turnable hoods
• Swing-out engine tray
• Control ADE® (Advanced Design Electronics) System
• Four wheel drive
• Horn
• Hydraulic Oil Cooler
• 5 degree tilt alarm and indicator light
• 33 X 12 D610 FF
• Oscillating Axle
• Lifting/tie down lugs
• Hour meter
• Ground control selector switch with key lock
• All motion alarm
• Platform power USB
• 110V-AC Receptacle in the Platform
• Skyline
• Platform tool tray
• 12V-DC auxiliary power
