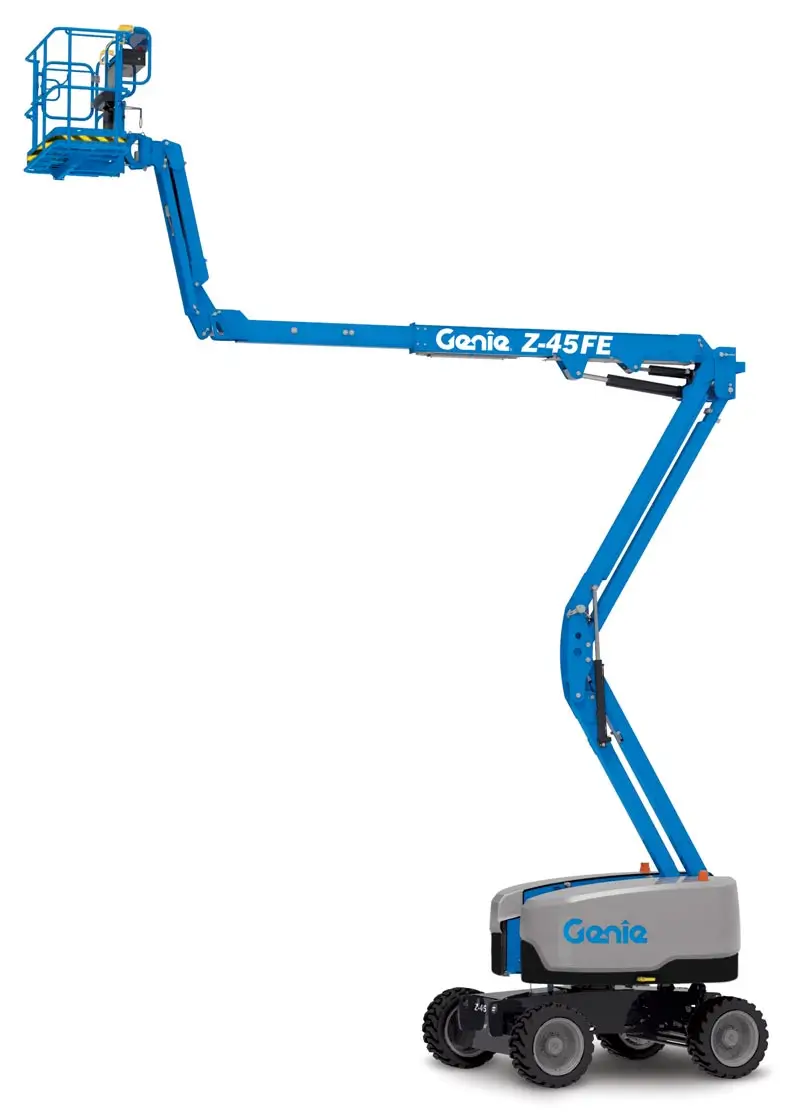

Genie Z-45 FE – 16m Max Working Height Hybrid Boom lift
Hybrid Articulating Boom Lift
Key Specs
- Max Working Height: 15.92 m | 52.2 ft
- Platform Capacity: 300 kg | 660 lb
| Specifications | |
| Max Working Height | 16 m |
| Max Platform Height | 14 m |
| Max Outreach (horizontal) | 6.94 m |
| Platform Size | 0.76 x 1.83 m |
| Max Platform Capacity | 300 kg |
| Weight | 6,379 kg |
| Power Source | Diesel and 48V DC (8 × 6V), 390Ah, FLA |
| Stowed Length | 6.11 m |
| Stowed Width | 2.29 m |
| Stowed Height | 2.29 m |
| Ground Clearance | 0.41 m |
- Full-time active oscillating axle helps maintain traction on rough terrain
- 4WD and 45% gradeability for superior terrainability
- High-efficiency AC drive system for enhanced driving performance and simplified maintenance
- Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers
