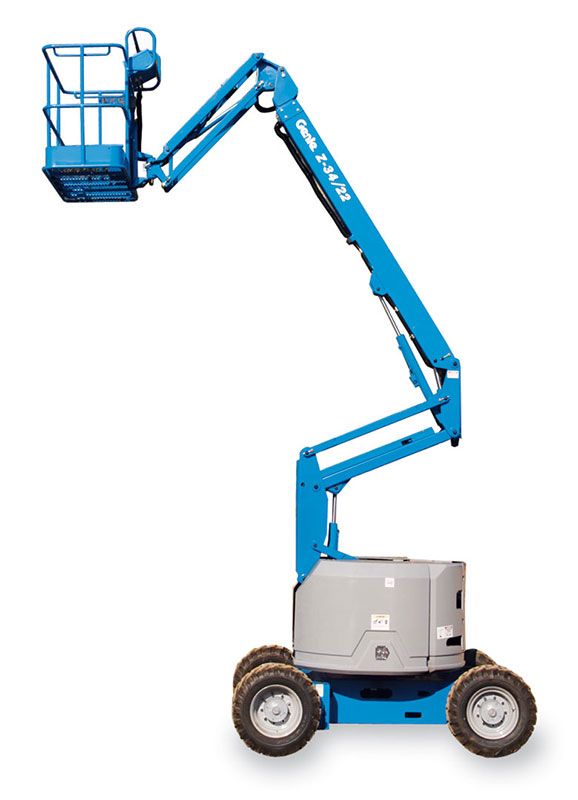

Genie Z-34/22 IC – 12.5m Max Working Height Boom lift
Diesel Powered Articulating Boom Lift
Key Specs
- Max Working Height: 12.54 m | 41.1 ft
- Platform Capacity: 227 kg | 500 lb
| Specifications | |
| Max Working Height | 12.5 m |
| Max Platform Height | 10.5 m |
| Max Outreach (horizontal) | 6.78 m |
| Platform Size | 0.76 x 1.42 m |
| Max Platform Capacity | 227 kg |
| Weight | 4,994 kg |
| Power Source | Diesel |
| Stowed Length | 5.66 m |
| Stowed Width | 1.85 m |
| Stowed Height | 2.06 m |
| Ground Clearance | 0.17 m |
- Zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas
- Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
- 4WD and up to 45% gradeability for superior terrainability
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers
